Model: PY-SS05
Glass tread choice:
Laminated Tempered Clear Glass; Laminated Tempered Frosted Glass
The balustrade itself is in-filled by either :
Vertical Steel Spindles
Horizontal Steel Rails
Curved Glass Panels
Curved Perforated Steel Panels

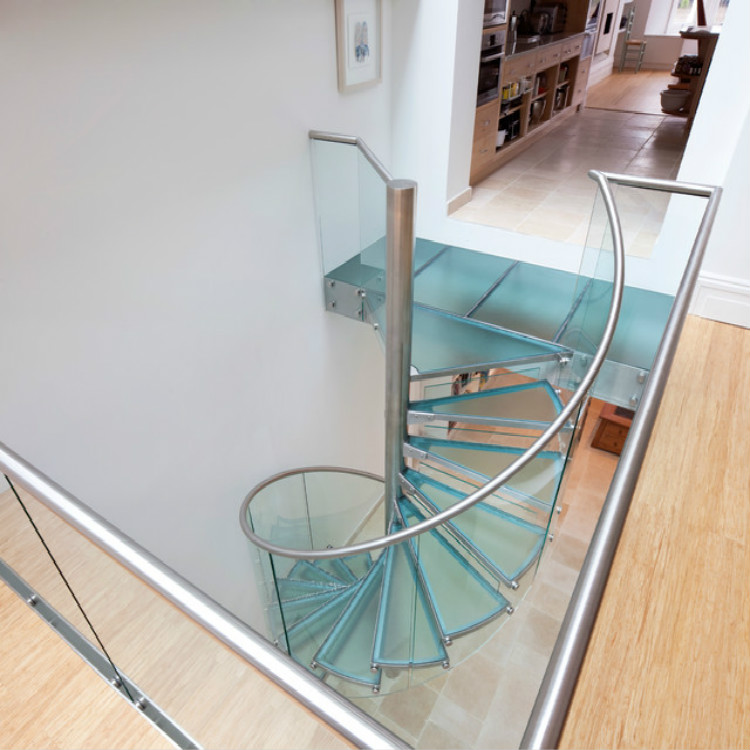

The handrail and newel posts on this spiral staircase are made in steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The tread is tempered clear glass.
| Floor to floor height | Customized |
| Risers | 150-210mm |
| Spiral Diameter | min. 1300mm |
| Clear Tread Width | Customized |
| Tread Type | 12+1.52+12mm laminated tempered clear/frosted glass 10+1.52+10+1.52+10mm triple laminated tempered clear/frosted glass |
| Balustrade Type | diameter 42.4mm 304s.s standoff/glass fixings with 12mm tempered clear glass |
| Handrail | Diameter 50.8mm 304s.s round slotted handrail with rubber gasket– Brushed |
| Centre Column | 102*4mm carbon steel column(unfinished)with 114*4mm stainless steel cover column-Brushed |
| Finish of Steel | Brushed/Polished Stainless Steel |
