Model: PY-SS06
Glass tread choice:
Laminated Tempered Clear Glass; Laminated Tempered Frosted Glass
The balustrade itself is in-filled by either :
Vertical Steel Spindles
Horizontal Steel Rails
Curved Glass Panels
Curved Perforated Steel Panels

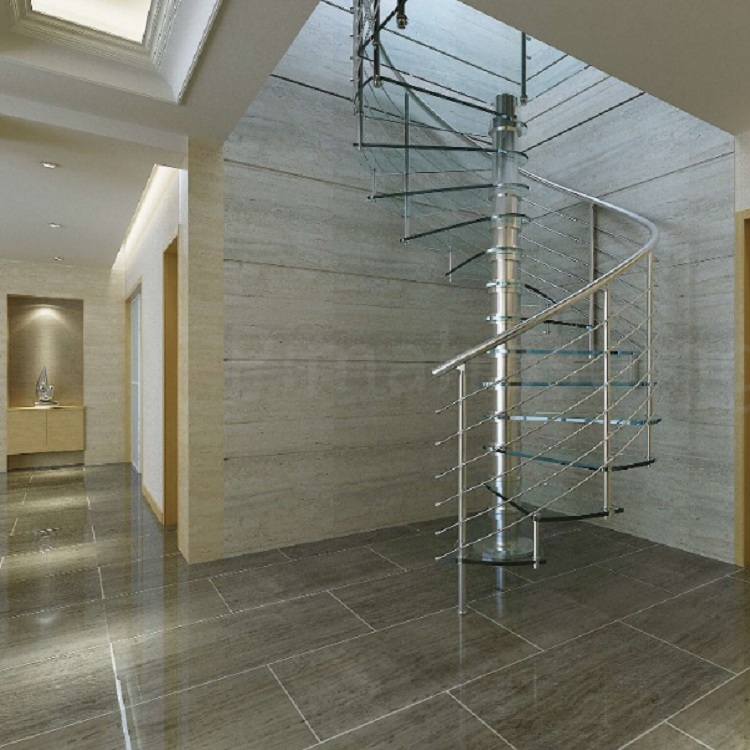

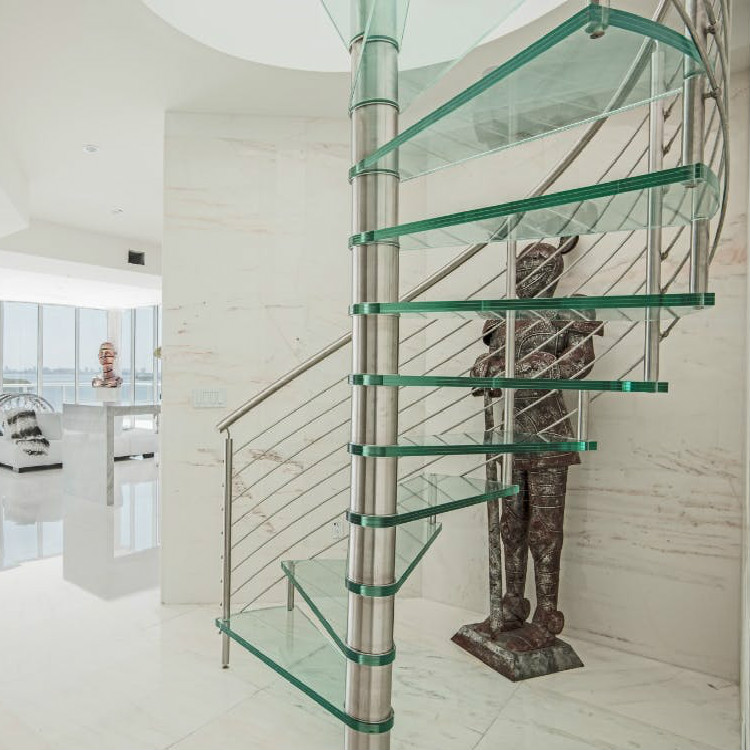

The handrail and newel posts on this spiral staircase are made in steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The tread is tempered clear glass.
| Floor to floor height | Customized |
| Risers | 150-210mm |
| Spiral Diameter | min. 1300mm |
| Clear Tread Width | Customized |
| Tread Type | 12+1.52+12mm laminated tempered clear/frosted glass 10+1.52+10+1.52+10mm triple laminated tempered clear/frosted glass |
| Balustrade Type | 8mm rod bar railing with diameter 38mm vertical spindles-Brushed |
| Handrail | Diameter 50.8mm 304s.s round handrail– Brushed |
| Centre Column | 76*4mm carbon steel column(unfinished)with 114*4mm stainless steel cover column-Brushed |
| Finish of Steel | Brushed/Polished Stainless Steel |
