Model: PY-SS04
Metal tread choice:
Stainless/Carbon Steel Diamond Checkered Plate Tread
The balustrade itself is in-filled by either :
Vertical Steel Spindles
Horizontal Steel Rails
Curved Perforated Steel Panels

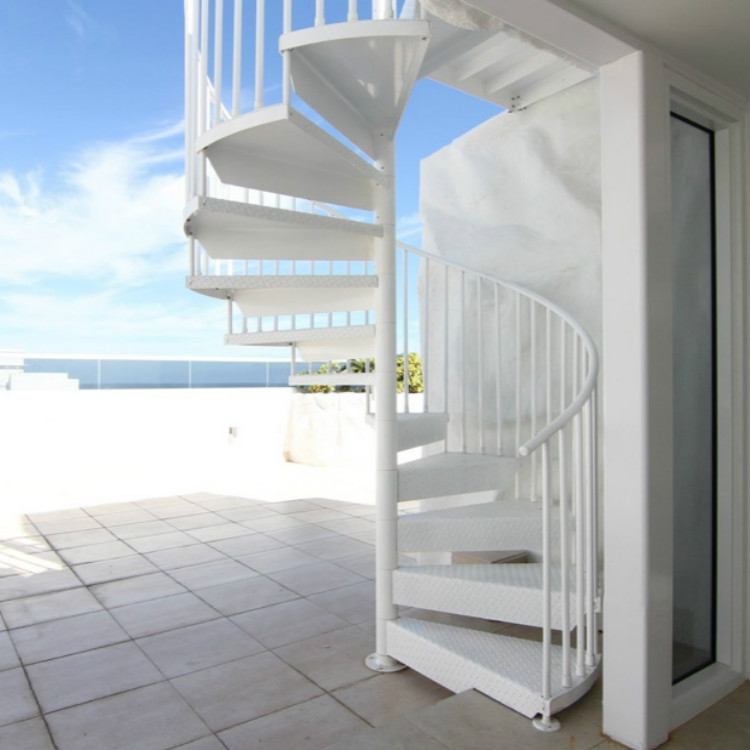

The handrail and newel posts on this spiral staircase are made in steel to match the other elements. Finish of the steel tends to be powder coated steel although although we can offer polished stainless or brushed stainless finish. The tread is steel diamond checkered plate.
| Floor to floor height | Customized |
| Risers | 150-210mm |
| Spiral Diameter | min. 1300mm |
| Clear Tread Width | Customized |
| Tread Type | 4/6mm bent diamond checkered plate. |
| Balustrade Type | diameter 25mm steel vertical spindles |
| Handrail | Diameter 50.8mm steel handrail – Powder Coated |
| Centre Column | 102*4mm carbon steel column(unfinished)with 114*4mm stainless steel cover column-Powder Coated |
| Finish of Steel | Brushed/Polished/Powder Coated Steel |
