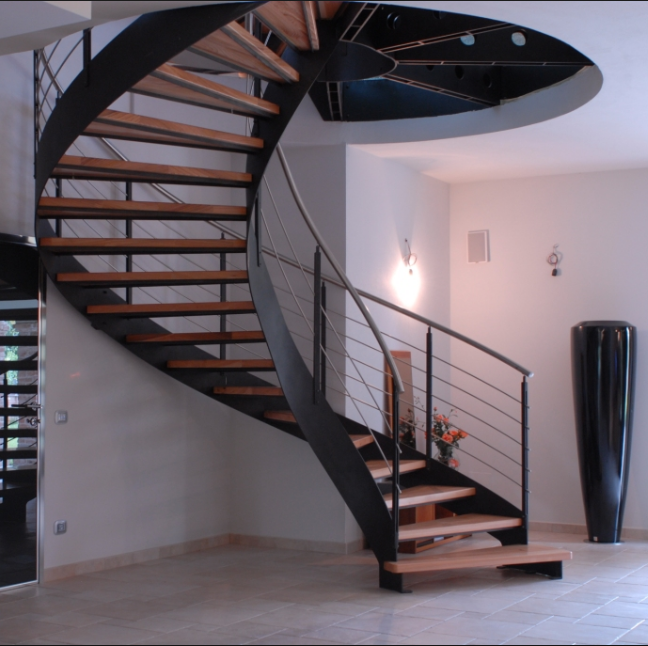

Internal residential round stairs indoor curved staircase design
  • Internal residential round stairs indoor curved staircase design
Internal residential round stairs indoor curved staircase design

Internal residential round stairs indoor curved staircase design

Model: PY-CS12

The structure consists of 300*10mm double side steel plate as stringer;

The color of the stringer can be powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.

Treads:Laminated Tempered Clear Glass/Laminated Tempered Frosted Glass/ wood/ stone

The balustrade itself is in-filled by either:

Horizontal Stainless Steel Rails

Framed Glass Infill Panels With Stainless Post

Frameless Glass Panels Bolted Directly To The Side Of The Stringer And Hardwood Treads

Framless Glass Panel Put Into The U Channel Stringer With Rubber




Product Details
Floor to floor heightCustomized
Risers150-200mm
Stair WidthCustomized
Clear Tread WidthCustomized
Tread Type40mm thick wood tread
Balustrade Typesteel rods railing
HandrailDiameter 50.8mm fascia mounted handrail– Brushed
Stair Stringer300*10mm double side steel plate
Finish of Steel

Brushed/Polished Stainless Steel

Powder Coated Steel

AdditionalAll main components can be customized


To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:

· Steel Riser Bars

· L shaped treads with timber downstand

· Half Glass Riser Pieces

· Full Glass Riser

· Full closed risers with timber


The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
