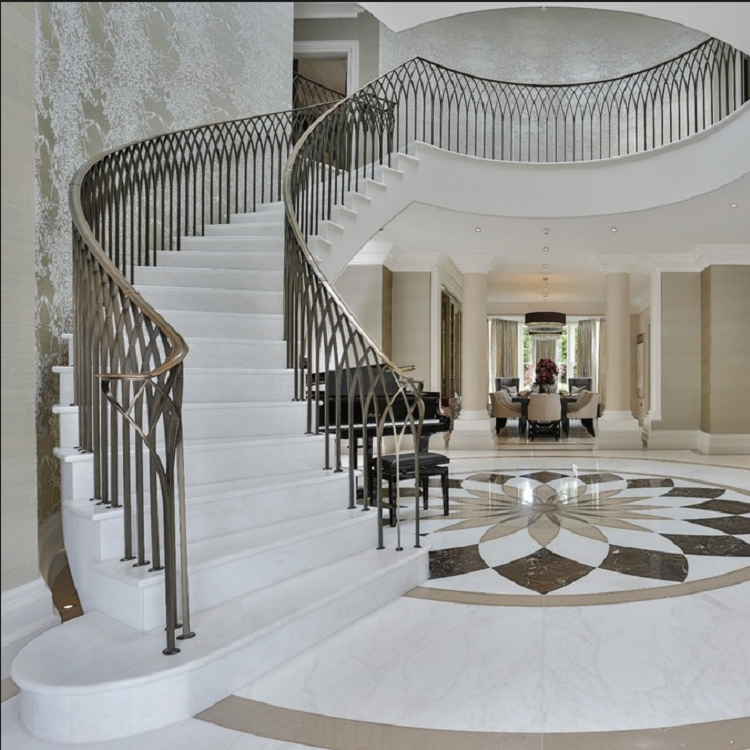

Model: PY-CS11
The structure consists of 300*12mm double side steel plate as stringer and balustrade
The color of the stringer can be powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads:Laminated Tempered Clear Glass/Laminated Tempered Frosted Glass/ wood/ stone
The balustrade itself is in-filled by either:
Horizontal Stainless Steel Rails
Framed Glass Infill Panels With Stainless Post
Frameless Glass Panels Bolted Directly To The Side Of The Stringer And Hardwood Treads
Framless Glass Panel Put Into The U Channel Stringer With Rubber
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | marble |
| Balustrade Type | stainless steel raling |
| Handrail | Diameter 50.8mm fascia mounted handrail– Brushed |
| Stair Stringer | 300*12mm double side steel plate |
| Finish of Steel | Brushed/Polished Stainless Steel Powder Coated Steel |
| Additional | All main components can be customized |
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:
· Steel Riser Bars
· L shaped treads with timber downstand
· Half Glass Riser Pieces
· Full Glass Riser
· Full closed risers with timber
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
