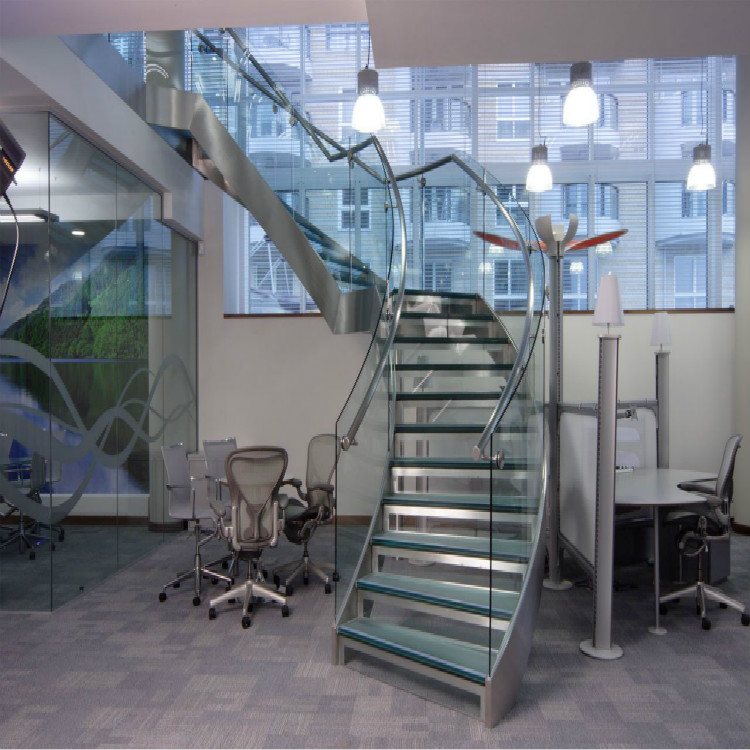

Free Standing Glass Curved Staircase
  • Free Standing Glass Curved Staircase
Free Standing Glass Curved Staircase

Free Standing Glass Curved Staircase

Model: PY-CS06

The structure consists of 300*12mm(6+6mm) U channel steel stringer,both sides of hardwood treads bolted directly into the side of the stringer.

The color of the stringer can be powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.

Treads:Laminated Tempered Clear Glass;Laminated Tempered Frosted Glass

The balustrade itself is in-filled by either:

Horizontal Stainless Steel Rails

Framed Glass Infill Panels With Stainless Post

Frameless Glass Panels Bolted Directly To The Side Of The Stringer And Hardwood Treads

Framless Glass Panel Put Into The U Channel Stringer With Rubber



Product Details
Floor to floor heightCustomized
Risers150-200mm
Stair WidthCustomized
Clear Tread WidthCustomized
Tread Type12+1.52+12mm tempered laminated glass-Clear
Balustrade Type12mm tempered glass-Clear
HandrailDiameter 50.8mm fascia mounted handrail– Brushed
Stair Stringer300*12mm(6+6mm) U channel stringer
Finish of Steel

Brushed/Polished Stainless Steel

Powder Coated Steel

AdditionalAll main components can be customized


To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:

· Steel Riser Bars

· L shaped treads with timber downstand

· Half Glass Riser Pieces

· Full Glass Riser

· Full closed risers with timber


The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
