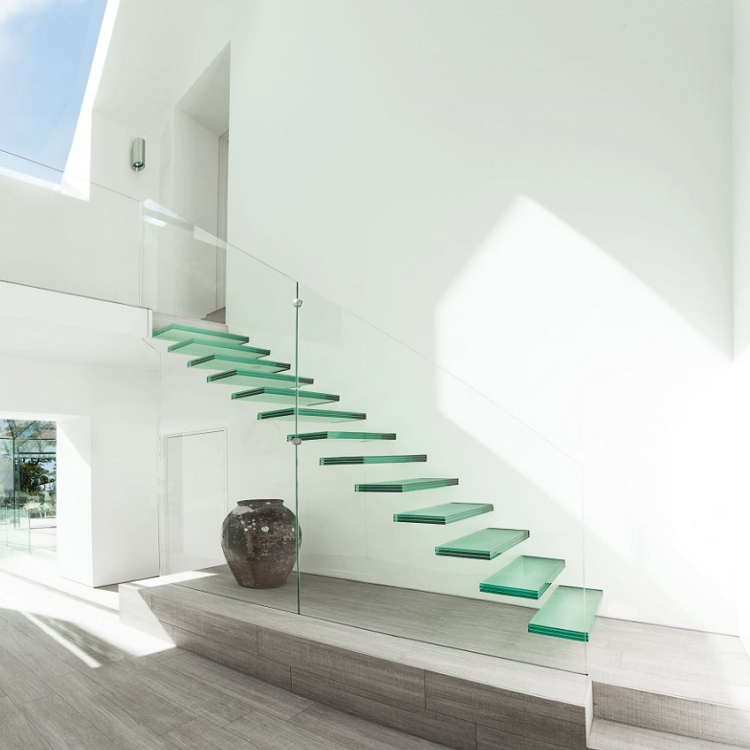

Model: PY-S10
The structure consists of 250*100*10mm steel stringer, the side of the glass balustrade bolted directly into the glass treads by standoffs or leave sapce to build the glass wall.The color of the stringer can be powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads:Laminated Tempered Clear Glass, Laminated Tempered Frosted Glass
The balustrade itself is in-filled by either:
Vertical Steel Spindles
Frameless Glass Panels Bolted Directly To The Side Of The Hardwood Treads
Glass Wall
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 12+1.52+12mm laminated tempered glass– Clear |
| Balustrade Type | 12mm tempered clear glass with diameter 42.4mm 304s.s standoff-Brushed |
| Handrail | Frameless/No handrail |
| Stringer | 250*100*10mm stringer |
| Finish of Steel | Galvanized + Powder Coated Carbon Steel Brushed/Polished Stainless Steel |
| Additional | All main components can be customized |
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:
· Steel Riser Bars
· L shaped treads with timber downstand
· Half Glass Riser Pieces
· Full Glass Riser
· Full closed risers with timber
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
