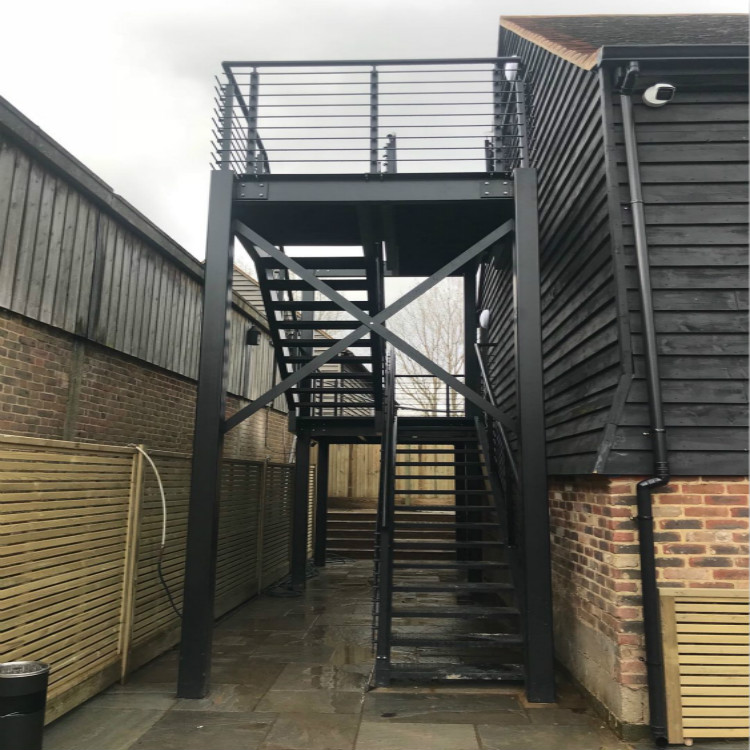

Model: PY-S02
The structure consists of 250*80*9mm carbon steel C stringer, the vertical post bolted to the stringer directly.
These stringers are powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads:4mm carbon steel diamond checkered plate tread
The balustrade itself is in-filled by:
Horizontal Stainless Steel Rails
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 4mm carbon steel diamond checkered plate tread-Powder Coated |
| Balustrade Type | diameter 12mm solid horizontal 304s.s rod bar-Brushed |
| Handrail | diameter 50.8mm carbon steel top handrail-Powder Coated |
| Stair Stringer | 250*80*9mm C shape stringer |
| Finish of Steel | Galvanized + Powder Coated Carbon Steel Brushed/Polished Stainless Steel |
| Additional | All main components can be customized |
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
