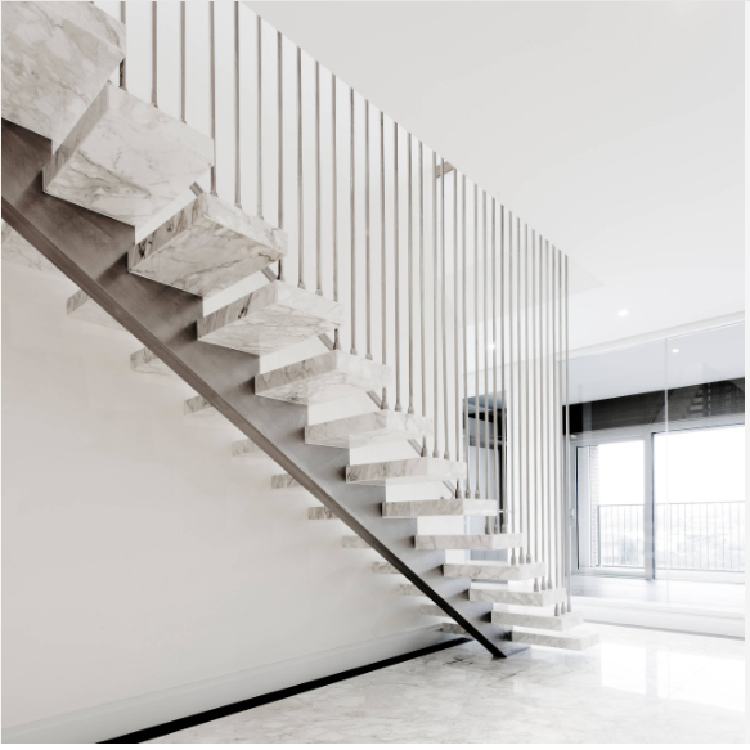

Model: PY-S17
The structure consists of center steel pipe beam, The center pipe beam is powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.
Treads:marble
The balustrade itself is in-filled by either:
Vertical Steel Spindles
Horizontal Stainless Steel Rails
Framed Glass Infill Panels With Stainless Post
Frameless Glass Panels Bolted Directly To The Side Of The Hardwood Treads
| Floor to floor height | Customized |
| Risers | 150-200mm |
| Stair Width | Customized |
| Clear Tread Width | Customized |
| Tread Type | 15mm thick marble made box with support hidden inside |
| Balustrade Type | 12mm tempered clear glass with diameter 42.4mm 304s.s brushed standoff |
| Handrail | 40mm square cape handrail 304s.s top mounted with gasket-brushed |
| Centre Beam | 100*200*6/150*250*5/150*150*8mm |
| Finish of Steel | Galvanized + Powder Coated Carbon SteelBrushed/Polished Stainless Steel |
| Additional | All main components can be customized |
The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project.
