Cable railing is comprised of square tubular post, a simple yet highly desired look.
Stainless steel cable in-fill is available in 5/32''(4mm) and 1/4''(6mm) diameter cable wire rope.
This system is made of 2''*2''(50*50mm) square post.
Stainless steel cable railing system is available in top and fascia mount.

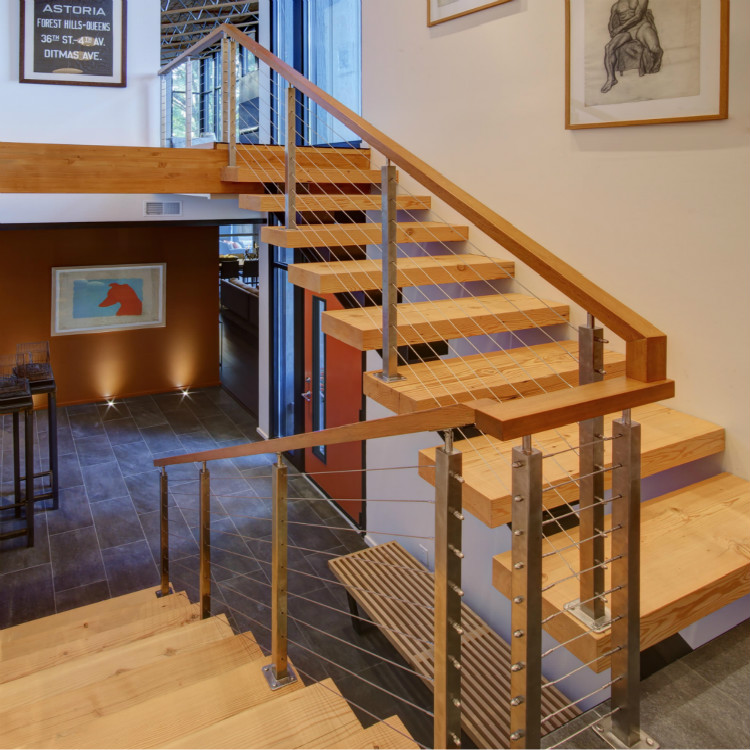

Widely used in deck railing&balcony railing and staircase application, where a clear line of sight along with safety is a priority.
| Maximum Centres | 1200 – 1500mm | Post Finishes | Satin OR Mirror |
| Material Grades | GRADE 304 (INTERNAL) GRADE 316 (EXTERNAL)GRADE 316L (EXTERNAL) | Post Measurements | diameter 38.1/42.4/50.8mm or 38*38/50*50mm MADE TO MEASURE (Prices vary) |
| Tube Diameters | 42.4mm/50.8mm | Base Plates Available | 100mm |
| Standard Height | 1000/1067/1100 or customized (To top of rail) | Compatible Fixings | Wood, Metal, Brick OR Concrete |
| Standard No. of Rows | 9(more or less rows available, prices will vary) | Post Construction | Welded base plate, Cover, Holes for wire, Tube support for top |
| Wire Thickness | 4mm/6mm | Top Rail | Must have top rail |
