Commercial Stainless Steel Railing Design
  • Commercial Stainless Steel Railing Design
Commercial Stainless Steel Railing Design

Commercial Stainless Steel Railing Design

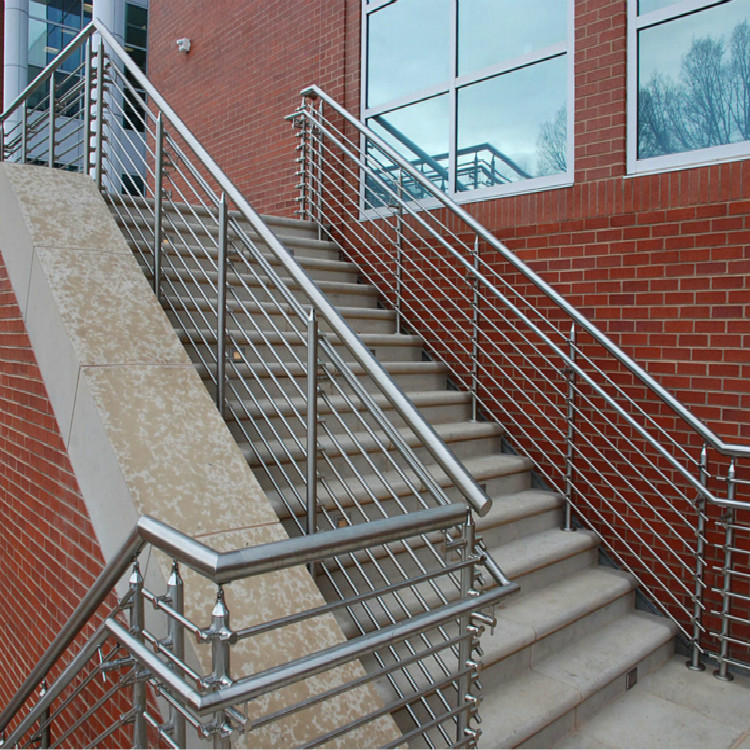

Rod railing is a contemporary minimalistic design.

Stainless steel rod bar in-fill is available in 5/16''(8mm)/1/2''(12mm) diameter solid rod bars.

This system is made of diameter 2''*2''(50*50mm) round post.

Stainless steel rod bar railing system is available in top and fascia mount.

Widely used in deck railing and balcony railing application, where a clear line of sight along with safety is a priority.



Product Details
Maximum Centres1200mmPost FinishesSatin OR Mirror
Material GradesGrade 304 (INTERNAL)
Grade 316 (EXTERNAL)
Handrail Stainless Steel/Solid   Wood/ PVC
Standard No. of Rows7(more or less rows available,prices will vary)Base Plates Available 100mm diameter cover100mm*100mm cover
Standard Height
(To top of rail)
1000mm1067mm(42 inches)1100mm1200mmCompatible Fixings Wood, Metal &
 Brick OR Concrete
Infill Measurements

8mm Solid Rod

12.7mm Hollow Tube

Post ConstructionWelded base plate, Cover,Tube support to top.
Post MeasurementsRound: 50.8/42.4/38mm;Square: 50*50mm;Rectangle: 50*25mm ApplicationsThis system will suit stairs, balconies, pool fence and decking
