Aluminum U Channel Glass Railing Systems
  • Aluminum U Channel Glass Railing Systems
Aluminum U Channel Glass Railing Systems

Aluminum U Channel Glass Railing Systems

PY-GSB02

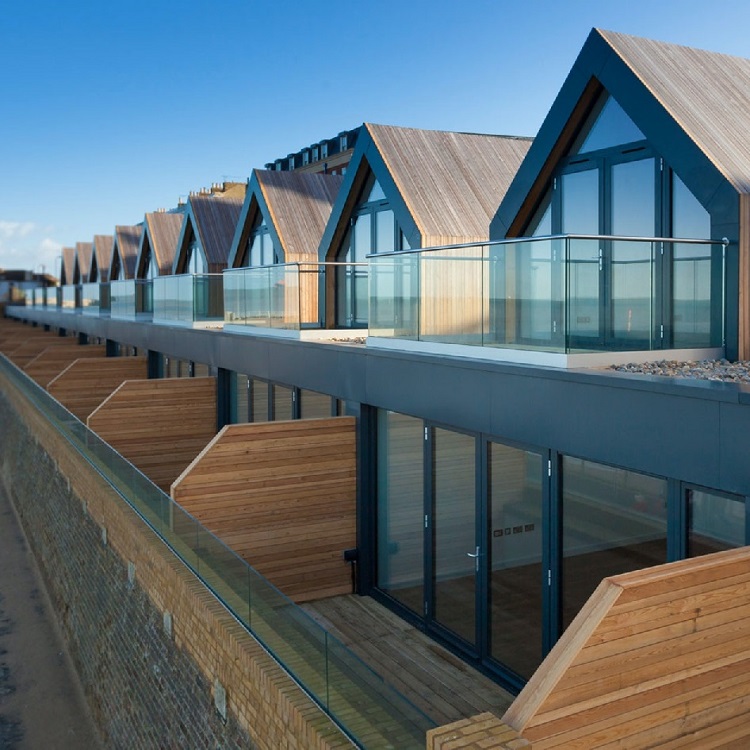

Choose a frameless glass balustrade and you will enjoy your views from any corner of your outdoor space. Available with or without a stainless steel slotted handrail, it is the perfect finish to add a stylish and modern look to your property.

The glass panels are available in a variety of specifications, from 1/2''(12mm) up to 3/8''+0.06''+3/8''(21.5mm) toughened and laminated depending on the specifications required. The glass is also available in a selection of colored tints which can act as a privacy screen and give you that personal touch to your system.

The glass balustrade systems are installed with an aluminium glazing channel available in standard profiles to suit a variety of installations. Base mounted or side mounted to the construction platform, it can be designed for both exterior and interior requirements, creating a finished look that is simple yet very effective.

Product Details
Max Gap1.5mMountTop/Fascia/Pre-buried
Cladding & Top Rail FinishesSatin OR MirrorGlass OptionsColoured, Laminated,
Clear, Frosted
Material Grades
(for cladding & top rail)
GRADE 304 (INTERNAL)
GRADE 316 (EXTERNAL)
Channel
Construction
102*62mm OR 102*70.5mm
Aluminium Channel

Tube Diameters

(Gasket required with rail to suit

 glass size)
50.8/42.4/38mm slotted handrailGlass Grips3 per metre
Standard Height
(To top of glass or rail)
1000mm,1067mm(42''),1100mm
Other heights available
Gaskets per
metre(Rubber)
Sticky with cladding
Push in. Please note that Cladding
is provided in 3m lengths
Glass Thickness12mm Toughened,
15mm Toughened,
17.5 Toughened Laminated, 19mm Toughened
OR 21.5mm Laminated
Compatible
Fixings
Metal,Concrete Or Timber Deck


If you're looking for a modern, stylish and safe way to finish off your balcony, stairs and voids, then look no further than glass balustrading. Not only does frameless glass balustrading and semi-frameless glass balustrading provide a sleek and sophisticated look, it will also leave you with unobstructed views.
