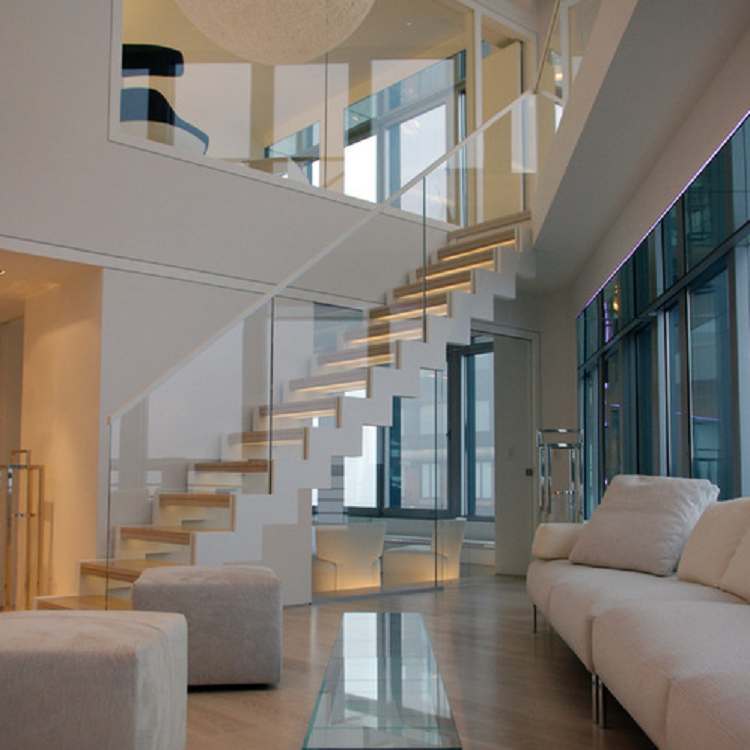

Zig-Zag Stringer Stair
  • Zig-Zag Stringer Stair
Zig-Zag Stringer Stair

Zig-Zag Stringer Stair

The structure consists of 300*12mm(6+6mm) steel stringers either side of hardwood treads put/bolted directly into the stringer.

These stringers are powder coated black, white, sliver and grey or supplied brushed or polished stainless steel.

Treads are either supplied matt varnished, oiled or stained in the factory and sometimes left untreated to be stained on site.

The balustrade itself is in-filled by either:

Horizontal Stainless Steel Rails

Framed Glass Infill Panels With Stainless Post

Frameless Glass Panels Bolted Directly To The Side Of The Hardwood Treads

Product Details
Floor to floor heightCustomized
Stair WidthCustomized
Clear Tread WidthCustomized
Tread Type40mm Ash – Painted
Balustrade Type12mm tempered clear glass
Handrailsolid wood top mounted handrail with gasket-Painted
Stair Stringer300*12mm(6+6mm) Zig-Zag shape
Finish of SteelGalvanized + Powder Coated Carbon SteelBrushed/Polished Stainless Steel
AdditionalAll main components can be customized

To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:

· Steel Riser Bars

· L shaped treads with timber downstand

· Half Glass Riser Pieces

· Full Glass Riser

· Full closed risers with timber

The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. The stair is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
