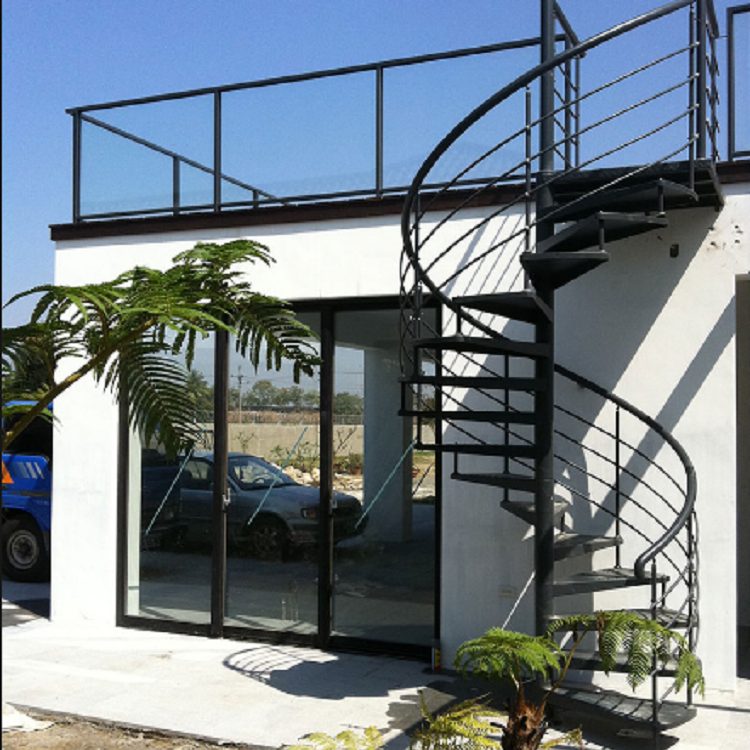

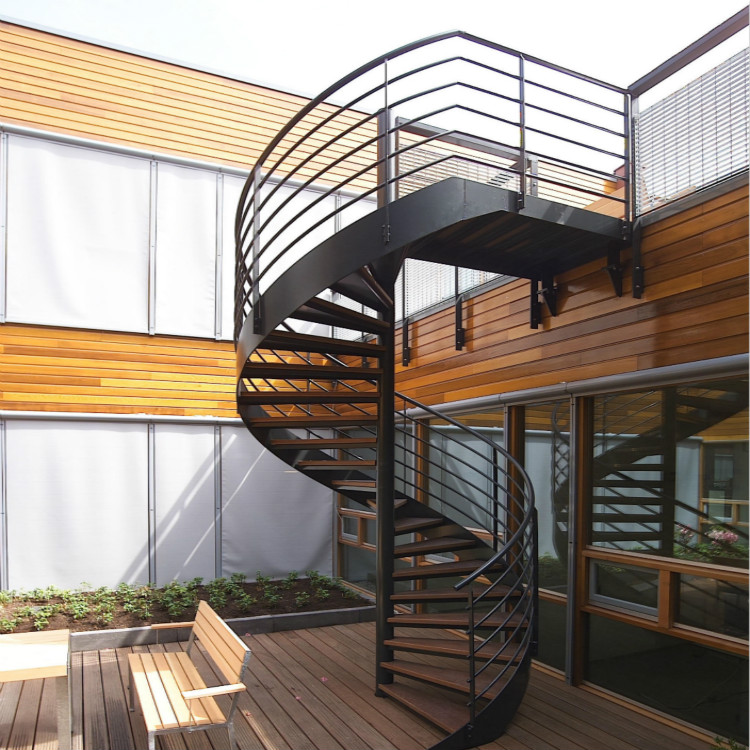

Exterior Spiral Staircase
  • Exterior Spiral Staircase
Exterior Spiral Staircase

Exterior Spiral Staircase

Timber tread choice:

Rubber Wood(Thailand Oak), Beech,Oak,Ash,Brich,Walnut,Teak

The balustrade itself is in-filled by either :

Vertical Steel Spindles
Horizontal Steel Rails
Curved Glass Panels
Curved Perforated Steel Panels

The handrail and newel posts on this spiral staircase are made in timber or steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The timber is oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Product Details
Floor to floor heightCustomized
Risers150-210mm
Spiral Diameter1300mm
Clear Tread WidthCustomized
Tread Type40mm Rubber Wood – Painted
Balustrade Type8mm rod bar railing with diameter 38mm carbon steel vertical spindles-Powder Coated
HandrailDiameter 50.8mm 304s.s round handrail– Brushed
Centre Column76*4mm carbon steel column with 114*4mm cover column;300*12mm side stringer-Powder Coated
Finish of SteelBrushed/Polished Stainless Steel
Powder Coated
