Frameless Glass Sliding Barn Door
  • Frameless Glass Sliding Barn Door
Frameless Glass Sliding Barn Door

Frameless Glass Sliding Barn Door

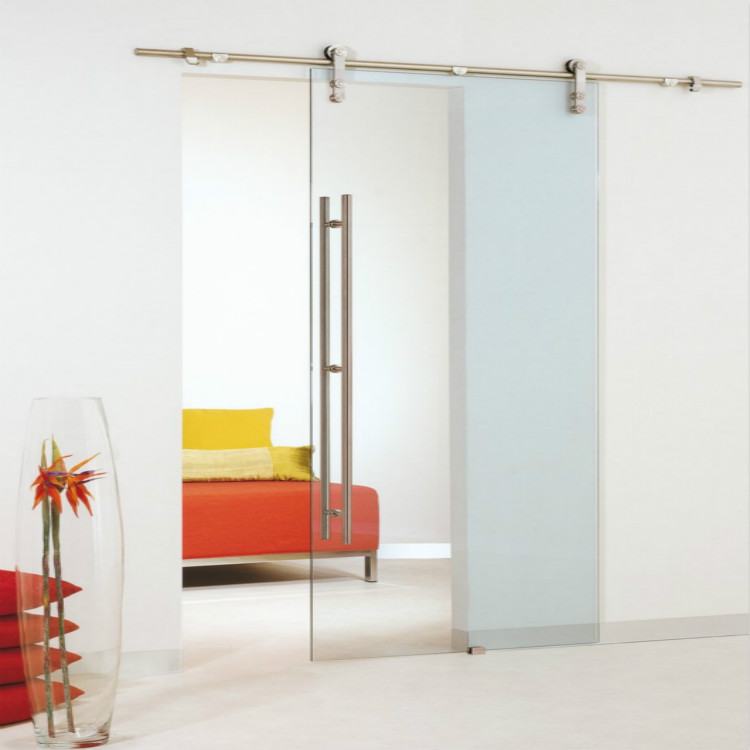

Modern glass door, this sliding glass barn door features solid tempered clear glass.Glass slides smoothly and quietly through quality stainless steel hardware.

The length of the track should be at least twice of the door panel's width. eg:6ft track--for less than 3ft door width.

For 8-10mm tempered glass.

Each door can bear max weight 120 kgs.

Product Details


   Components            Material                                                        Specification


  Hanger Roller


    304s.s

Hangers rollers with bolts. Stainless steel brushed finish.

Screws for 35-40mm/40-45mm thickness wooden door or 8-10mm glass door.

  Rail/Track    304s.s

Diameter 25mm,2mm wall thickness.The rail can be supplied 2m in one piece.

Holes distance can be made as your requirment.

  Screw & nut    304s.s

Two different kinds of screw for concrete wall and timber wall are available.

The distance between door and wall is about 20mm after the installation being completed.

  Door Stopper    304s.s

One right version, one left version. For both ends of rail and prevent rollers out of control.

These stoppers are match rail without obvious gap.

  Floor guide    304s.s For the bottom of doors,8-10mm glass.
