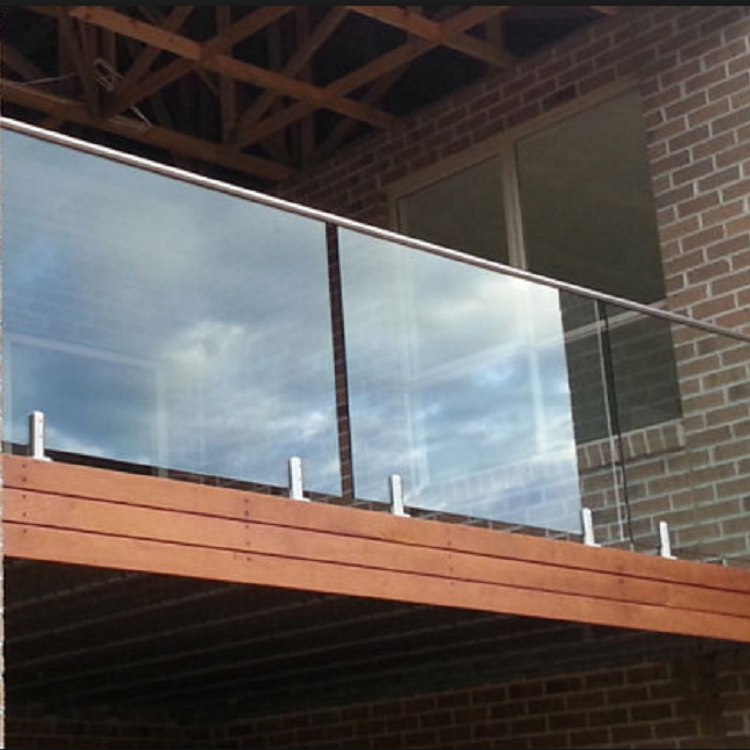

Semi-Frameless Glass Balustrade With Top Fixed Handrail
  • Semi-Frameless Glass Balustrade With Top Fixed Handrail
Semi-Frameless Glass Balustrade With Top Fixed Handrail

Semi-Frameless Glass Balustrade With Top Fixed Handrail

Frameless glass balustrading normally refers to having no surrounding material on at least three of the four sides of each panel.

In some countries require a top rail on every balustrade protecting a fall of greater than 3' 31/2''(1000mm), thus a top rail sits on top of the balustrading or it can be an offset rail attached to the inside of the glass.

The glass panels are often supported by spigots. The glass we use is 1/2''(12mm) clear toughened glass and panels spans are up to 1500mm wide, depending on the length of run.


Product Details
Maximum Centers1500mmFinishSatin or Mirror
Stainless Steel GradeGrade 304(Internal)Grade 316(External)Glass OptionClear, Frosted or Tinted
Spigot Spec.

dia. 42/50mm round shape

50*50mm square shape

Base PlateWelded
 Standard Height

USA: 36'' or 42'' or customized;

Austrlia:1m or customized;

Europe: 110-120cm or customized'

The height can be to the top of the rail or   to the top of glass if it's frameless design



Compatible Fixings

Wood,Metal,Brick&Concrete

Spigot & Glass Measurements

Made To Measure(Price Vary)

Spigot Construction

Weld Base Plate, casting made
Glass Thickness12mm Toughened,6+1.52+6mm LaminatedMount TypeTop Or Fascia Mount


If you're looking for a modern, stylish and safe way to finish off your balcony, stairs and voids, then look no further than glass balustrading. Not only does frameless glass balustrading and semi-frameless glass balustrading provide a sleek and sophisticated look, it will also leave you with unobstructed views.
